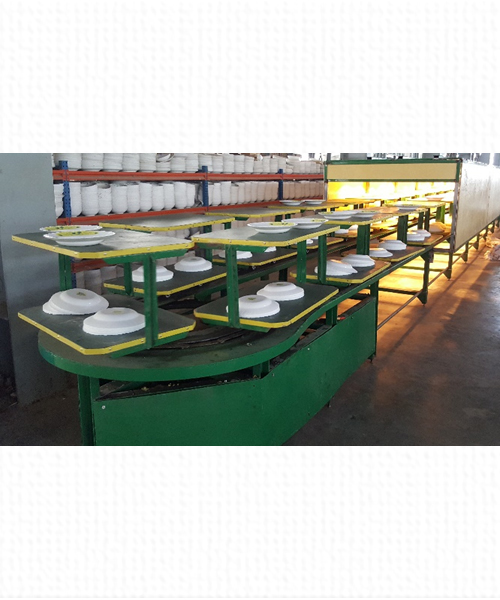

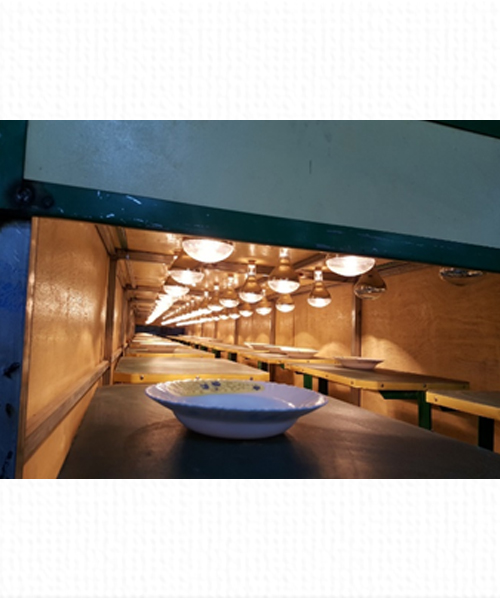

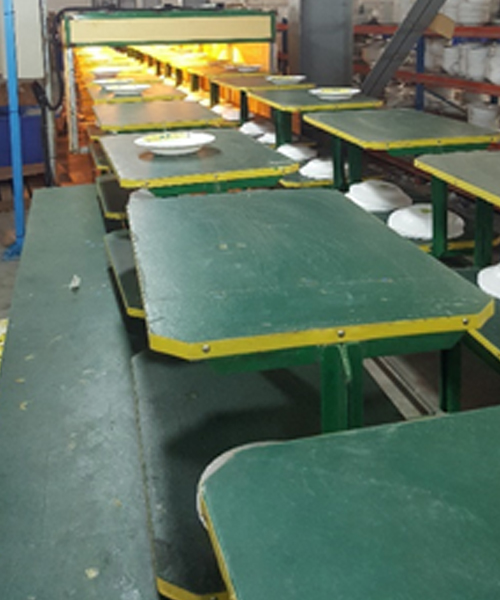

This is a conveying device of which conveyor table laid on chain moves on the rail endlessly. There are three kinds of tables. This can be installed in accordance with purpose and space.

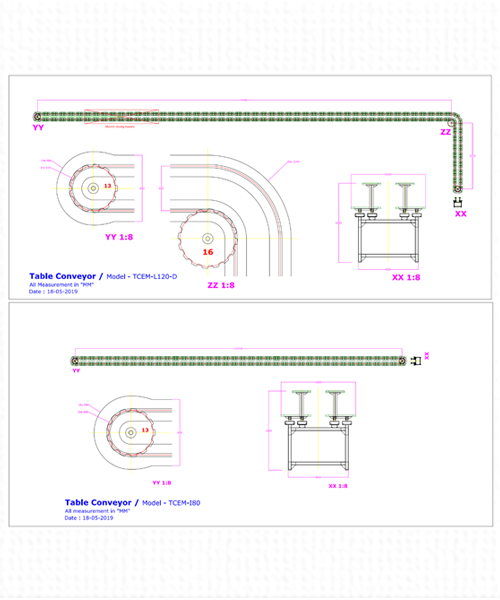

Specification:

• Overall dimension: L 45,000 x W 1,220 mm
• Chain Length: 90,000 mm
• Number of Conveyor Car: 100 Sets
• Car/Table Size: W450 x L700 mm. Double flat Deck type Car.
• Caster wheel size: Ø 50 mm
• Chain: 120 sets, 150 mm pitch, 6 links / set
• Driven Sprocket wheel two pieces at both end of the conveyor
• Power: 3 kW, 440VAC, 3~phase, 50Hz
• Complete set.
