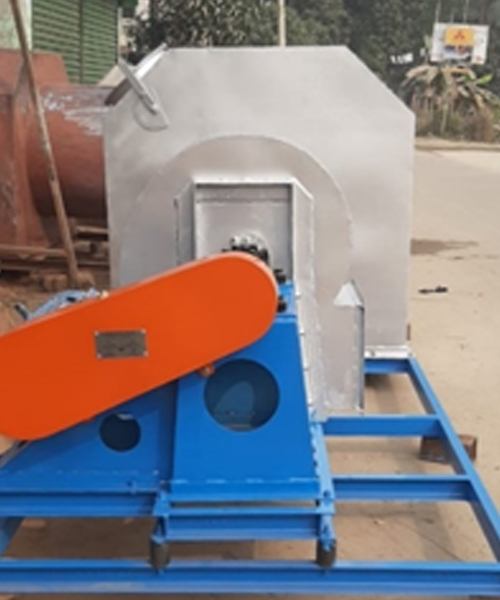

This is a device which is generate Hot Air for drying ceramic green wares. This is included a Firing Chamber, Blower and a Burner

 Specification:

• Firing Chamber : Size 1,400 x 1,400 x 1,900 mm, To be made by M.S Sheet, U-Channel and Angle
• Flame Control : S.S Chamber
• Turbo Blower : Size 975 x 875 x 1,075 (H) mm, Inlet Area 0.185 SM, Outlet Area 0.168 SM, Wheel Diameter 0.53 M, Air Volume 9,000 CBM/hr, Outlet Velocity 15 m/s
• Installed Power : 7.5 kW, 3~ 400VAC, 50Hz

Customer Responsibility:

• Gas Burner – Capacity 61,000 ~ 199,000 kcal/hr., Motor 250 Watt, Single phase 220VAC, 50Hz, Pipe Size : 1”
