This machine is used to do 2 different color at a time. To be made by U-Channel, Shaft, Angle, Pneumatic Cylinder with accessories of its structure fabrication. The glazing contact parts are used Stainless (304) Steel.

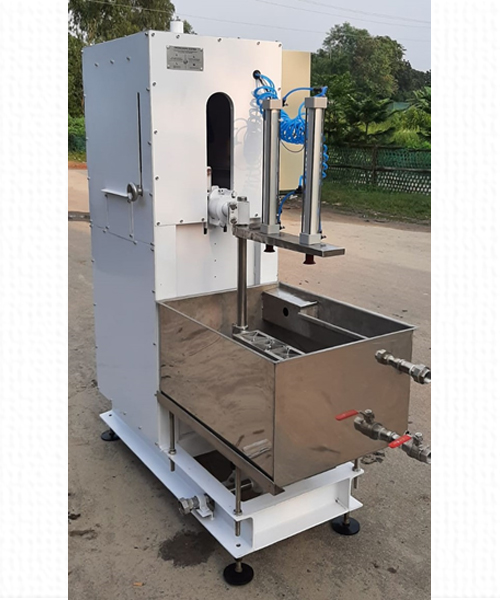

Outside Glaze Dipping Machine – 1 pcs

• Size: L 5,000 x W 600 x H 1,500 mm
• Operation is controlled by PLC for Pneumatic item’s movement

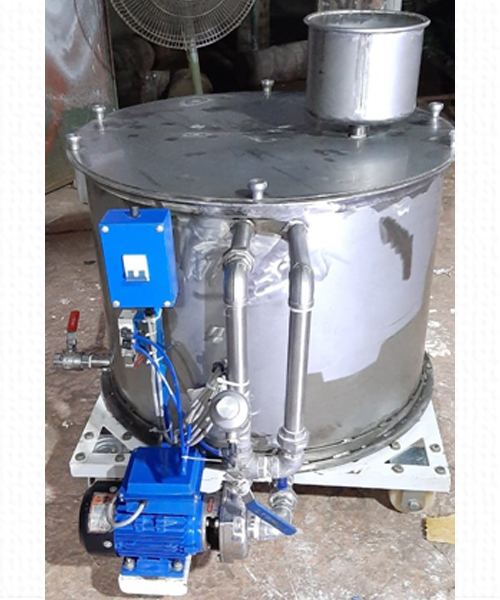

Slow Agitator – 1 pcs

• S Tank Size Ø 970 x H 750 mm
• Shaft & Wings made by Stainless Steel
• Drive by Gear Motor 1kW, 3~ 440VAC

Pneumatic Diaphragm Pump – 1 pcs

• Inlet & Outlet diameter 1”, Flap type

Turn Table – 4 sets

• Ø 1,200 x H 750 mm
• To be made by M.S Angle, Shaft, Ply Wood & at the top Rubber Sheet

Inside Glazing Machine – 1 pcs

• L 1,100 x W 800 x H 600 mm
• Electric Pump Motor 0.5kW
• Glazing control by Mechatronic Accessories

Foot Wiping Belt Machine – 1 pcs

• Belt Size: Endless L 1,140 x W 460 mm
• Speed : Variable
