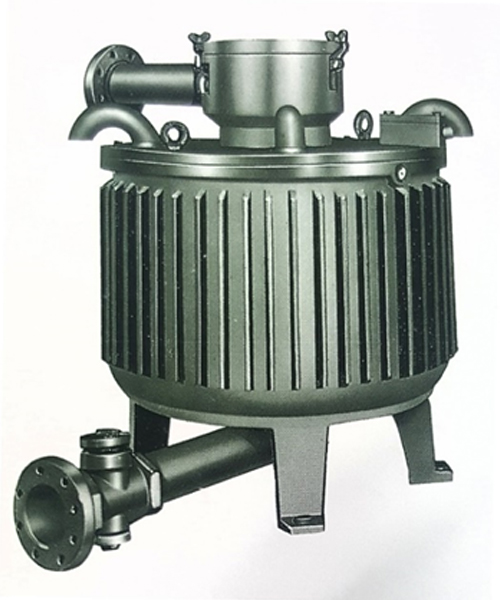

This is a machine to eliminate the ferrous metal in the slip which causes a problem in the ceramics industry. Silicone rectifier converts an alternating current to a direct current. And then, an alternating current passes to an electromagnetic coil incorporated in and changes a magnetic plate to a strong electromagnet. Like this, the ferrous metal is attracted to the electromagnet and is eliminated. This machine can be operated continuously for many hours by using high pressure insulating oil for cooling and insulation.
This is a machine to eliminate the ferrous metal in the slip which causes a problem in the ceramics industry. Silicone rectifier converts an alternating current to a direct current. And then, an alternating current passes to an electromagnetic coil incorporated in and changes a magnetic plate to a strong electromagnet. Like this, the ferrous metal is attracted to the electromagnet and is eliminated. This machine can be operated continuously for many hours by using high pressure insulating oil for cooling and insulation.
Specification:
| · Dimension | : Ø 470 x 700 mm |

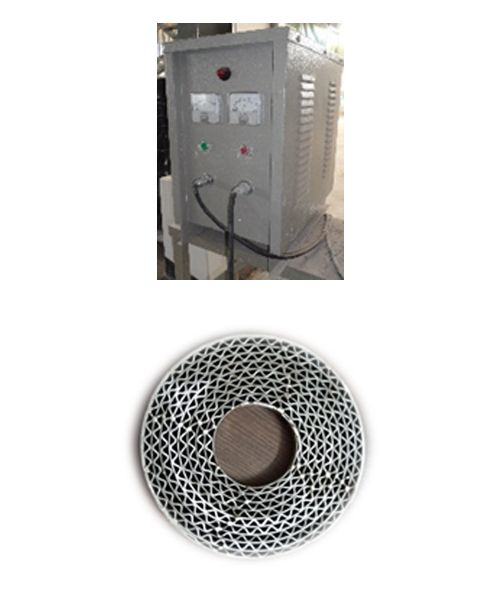

| · Rectifier Size | : W 430 x L 370 x H 550 mm |
| · Capacity | : 1,000 ~ 2,000 kgs/hr. |
| · Magnetic Power | : D.C. 75V – 1,200 W |
| · Rectifying Method | : Silicone 3~phase all wave rectifying |
| · Magnetic Plate | : Stainless Steel OD 158 x ID 60 x T 10 mm |
| · Transformer – Step down | : 2.5KVA, Primary : 3~phase, 400VAC,
Secondary : 3~phase with Multi-taping 63, 66, 70, 74 VAC |
