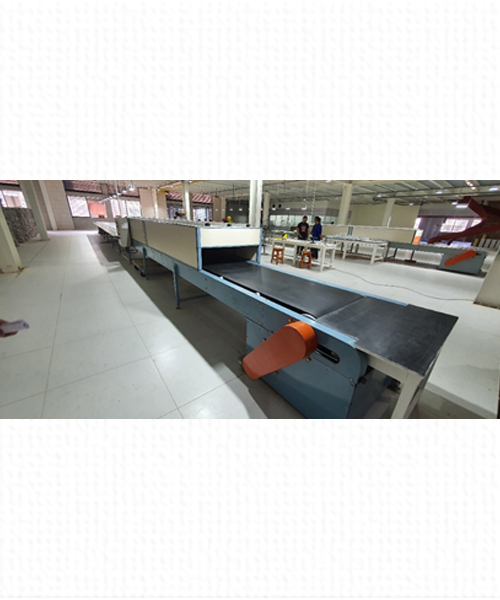

This Conveyor is used for setting Decals upon the white wares. The people can do the decal application from the both side of this conveyor. This conveyor also run in variable speed as per the requirement of the production.

• L 21,000 x W 1,000 x H 750/1,250 mm
• Structure: Made by Mild Steel C-Channel & Hollow Boxes
• Belt Size: Endless Rubber Belt; Endless L 38,600 x W 750 x T 8 mm; 3~ply
• Driving Unit: Gear Box, Pulley & Motor
• Speed: 14 mtr/min at 50Hz, Speed can be adjusted by Frequency Inverter.

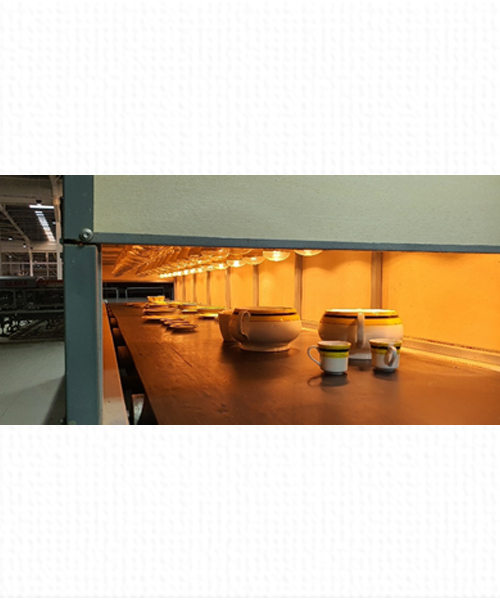

• Dryer: L 5,000 x W 1,000 x H 500 mm.
• 250W – 50 Infrared lamps will be set up for drying the wares.
• Wooden Table: Both side; L 12,300 x W 300 mm
• Motor: 2.2 kW, 1440 rpm, 3~phase, 400VAC (Volt, Turkey)
• Installed Power: 15 kW
