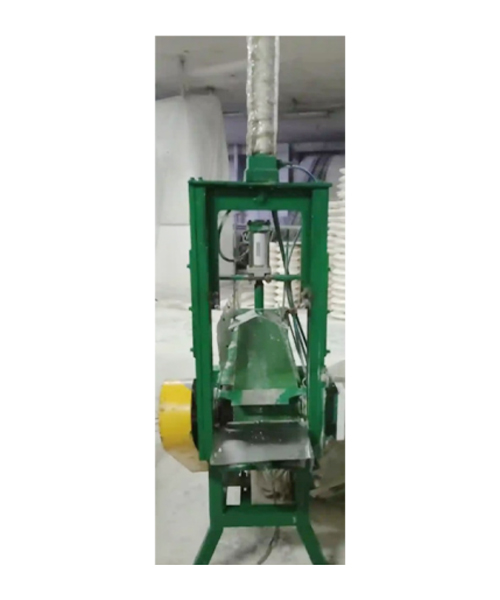

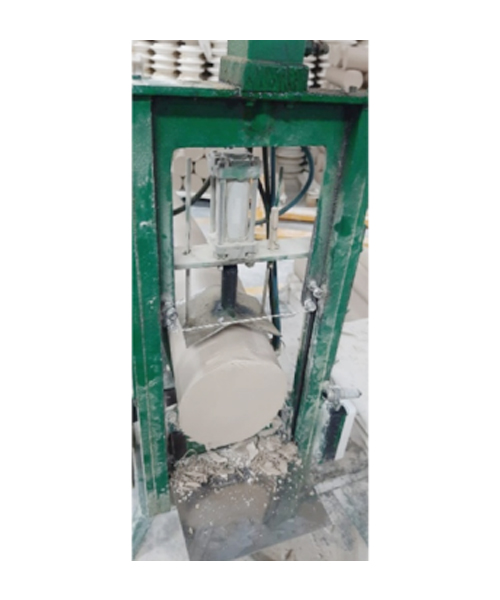

This machine is devised to cut clay or pug roll at any suitable thickness constantly with in capacity by synchronizing with the automatic jiggering machine. Therefore it makes clay supply possible accurately. It also enables to enhance quality of product to decrease loss of clay and to save labor cost.

Specification:

• Model : K-CC
• Capacity : Clay Roll diameter – 50 ~ 180 mm x Thickness – 4 ~ 75 mm
• Dimension : W 500 x L 1,110 x H 1,190 mm
• Body : Steel, top surface Stainless Steel
• Structure : Single Belt Conveyor
• Driving : Cam and Coaster transmission
• Cutting Timing : Combined timing system with shaping machine by Pneumatic Cylinder Independent timing system by push-button switch.
• Installed Power : 1 HP
