Specification:

• Lifting Capacity: 4,000 kg

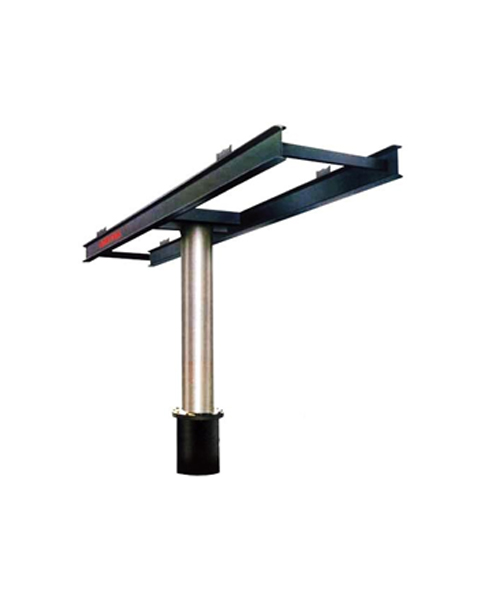

• Type: One Cylinder Hydraulic Lift
• Lifting Height Maximum:1,500 mm
• Air Operate: 5-8 bar
• Plunger Diameter: 270 mm
• Rise Time: 60 Sec
• Down Time: 55 Sec
• Working Space: 3,000 x 6,250 mm

Special Features:

• Plungers are of high grade steel manufactured to close tolerance with hard chrome plating for high wear resistance and good finish
• Outer cylinder coated with Fiber Reinforced Plastic protecting it against corrosion (optional)
• Uniquely designed wiper rings prevent entry of water and dust into the Hoist cylinder
• Gland rings used in the plungers are designed for enhanced performance
• Heavy duty rigid ramps accommodate a wide range of vehicles of varying size and type
